Medical Injection Molding: Applications, Materials, Manufacturing Standards, and Industry Solutions
Table of Contents
Introduction
Medical injection molding has become one of the most important manufacturing processes in the healthcare industry. From disposable syringes and diagnostic device housings to surgical instruments and wearable medical equipment, injection molding enables the efficient production of high-precision plastic components that meet stringent quality, safety, and regulatory requirements.
Compared with traditional manufacturing methods, plastic injection molding offers excellent dimensional accuracy, repeatability, material consistency, and cost efficiency for both disposable and reusable medical products. Modern medical manufacturers increasingly rely on automation, cleanroom production, and validated manufacturing processes to ensure that every component meets strict healthcare standards.
Medical plastic parts often require exceptional biocompatibility, chemical resistance, sterilization compatibility, and mechanical performance. Selecting the appropriate engineering material and mold design is therefore critical to product reliability and patient safety.
At Samgo, we provide complete engineering support for medical plastic components, including product design optimization, DFM analysis, Moldflow simulation, precision mold manufacturing, clean manufacturing support, and injection molding solutions for medical devices.
This guide explores the major applications of injection molding in the medical industry, commonly used materials, manufacturing requirements, quality standards, and best engineering practices.
Why Injection Molding Is Ideal for Medical Devices
The medical industry demands consistent quality, high production efficiency, and compliance with international regulations. Injection molding satisfies these requirements by producing complex plastic components with tight tolerances and excellent repeatability.
Key Advantages
- High dimensional accuracy
- Excellent repeatability for mass production
- Compatible with cleanroom manufacturing
- Suitable for disposable and reusable devices
- Wide range of medical-grade materials
- Low production cost at high volumes
- Complex geometries in a single molding cycle
- Automation-friendly manufacturing process
These advantages make injection molding the preferred manufacturing method for many medical products ranging from simple consumables to sophisticated diagnostic equipment.
Medical Injection Molding Benefits
| Benefit | Value for Medical Manufacturing |
|---|---|
| High Precision | Consistent product quality |
| Repeatability | Stable mass production |
| Material Versatility | Supports multiple medical polymers |
| Automation | Reduced human contamination |
| Cost Efficiency | Competitive large-scale production |
| Complex Geometry | Integrated part design |
Applications of Injection Molding in the Medical Industry
Medical injection molding is used across nearly every segment of modern healthcare.

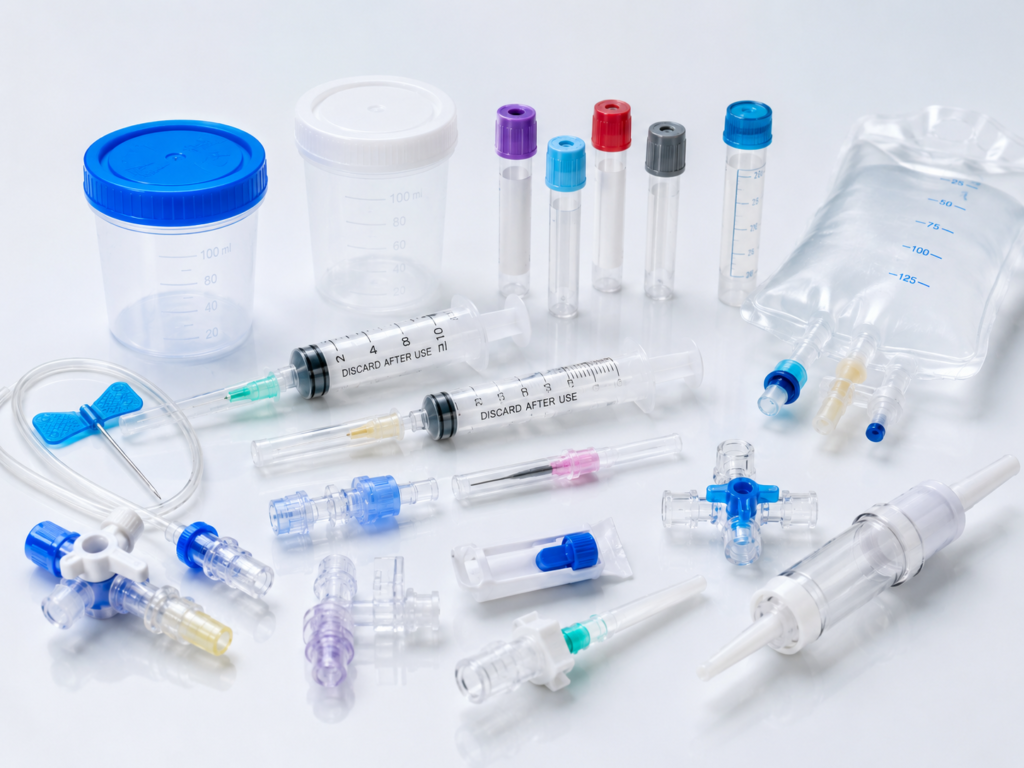

1. Disposable Medical Products
Single-use medical products reduce the risk of cross-contamination and infection. Injection molding enables high-volume manufacturing with consistent quality.
Typical products include:
- Syringes
- IV connectors
- Blood collection tubes
- Pipette tips
- Specimen containers
- Test kit housings

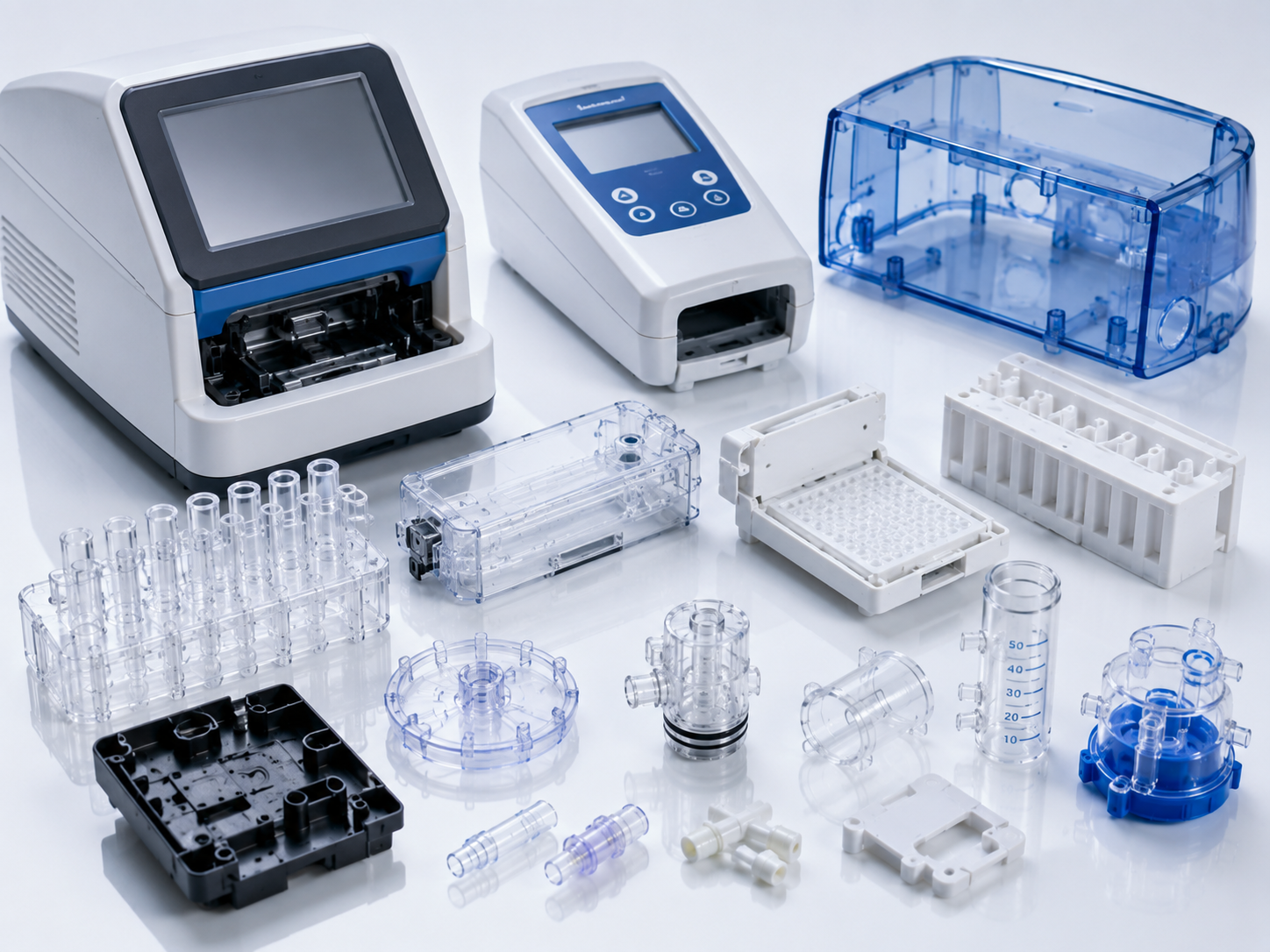

2. Diagnostic Equipment
Modern diagnostic instruments contain numerous precision-molded plastic components.
Common applications include:
- Analyzer housings
- Cartridge systems
- Optical holders
- Sensor enclosures
- Laboratory consumables

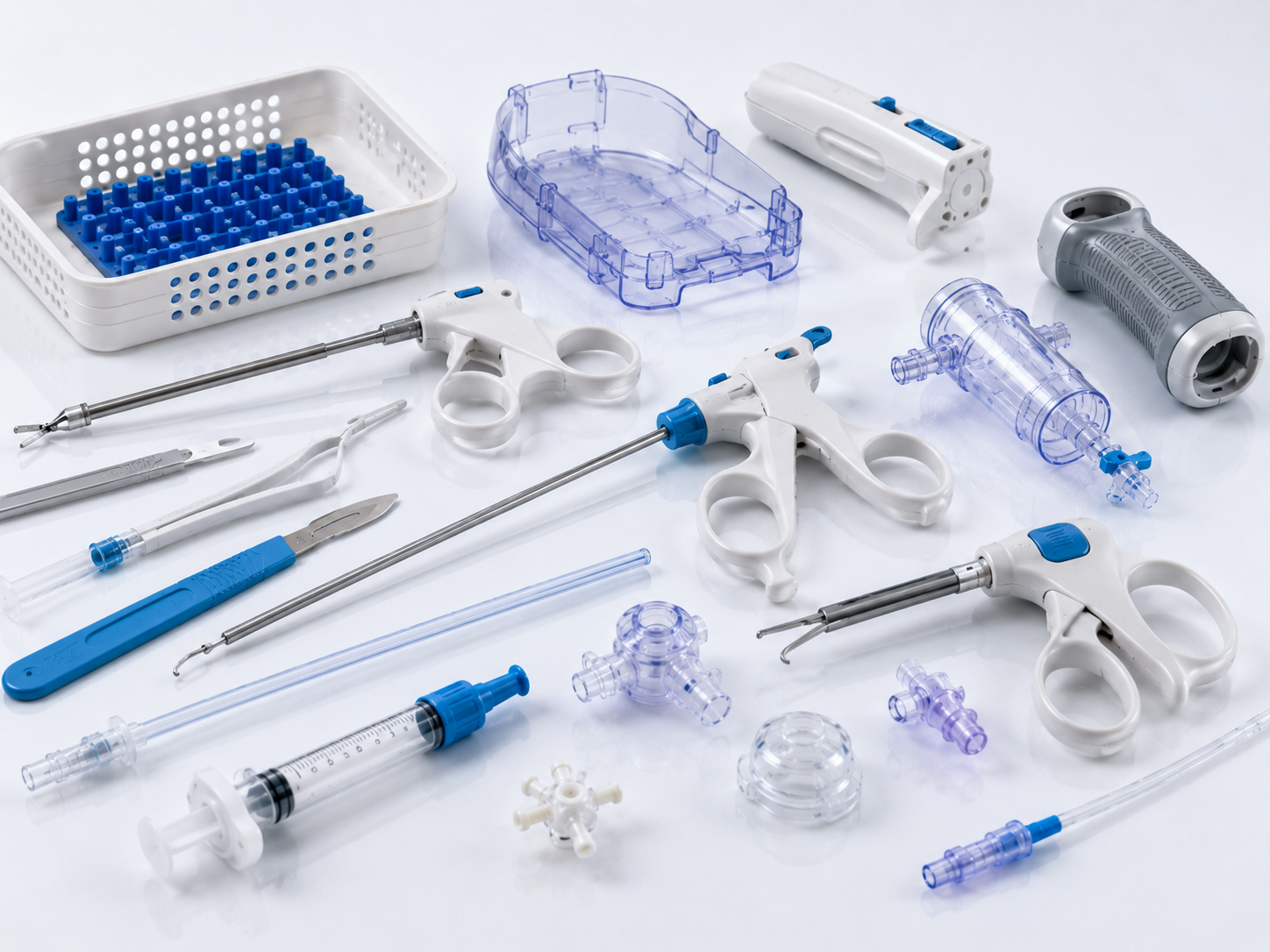

3. Surgical Instruments
Plastic injection molding is widely used for lightweight, ergonomic components in surgical tools.
Examples include:
- Instrument handles
- Endoscopic device housings
- Disposable surgical accessories
- Protective covers
Medical Product Categories
| Product Category | Typical Injection Molded Components |
|---|---|
| Disposable Devices | Syringes, connectors, caps |
| Diagnostic Equipment | Analyzer housings, cartridges |
| Surgical Instruments | Handles, protective covers |

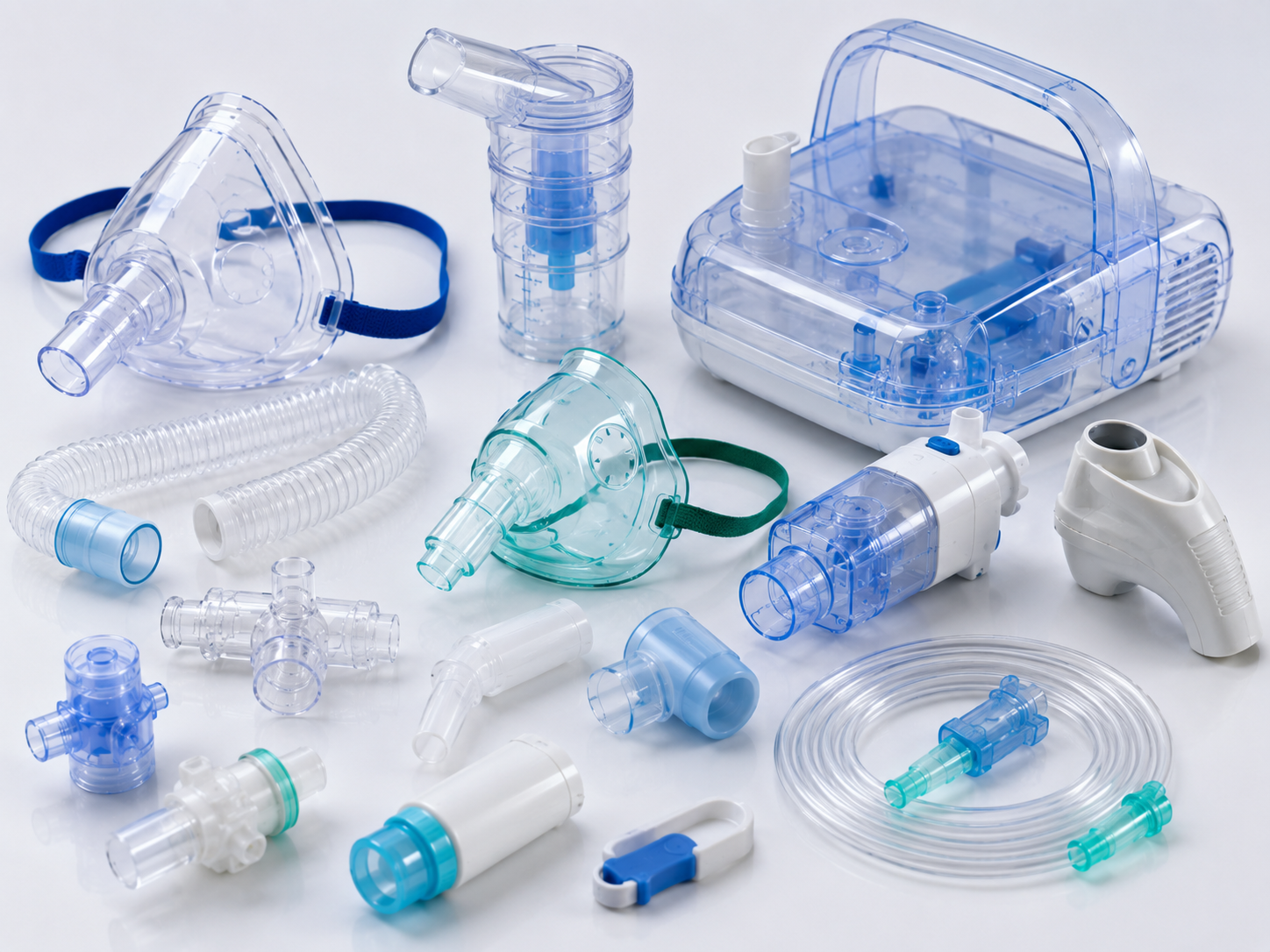

| Respiratory Devices | Oxygen mask components, nebulizer housings |

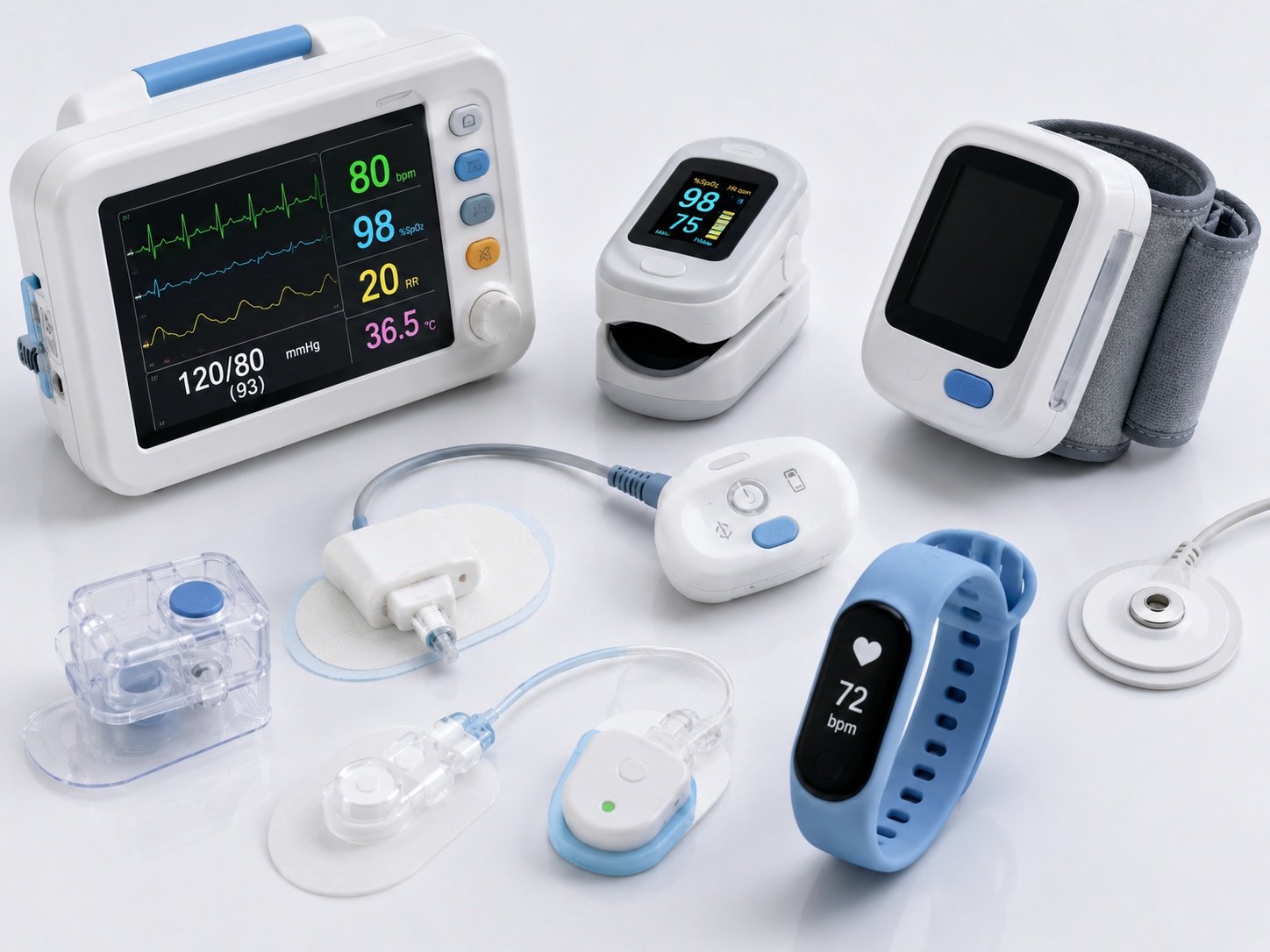

| Patient Monitoring | Sensor housings, wearable enclosures |

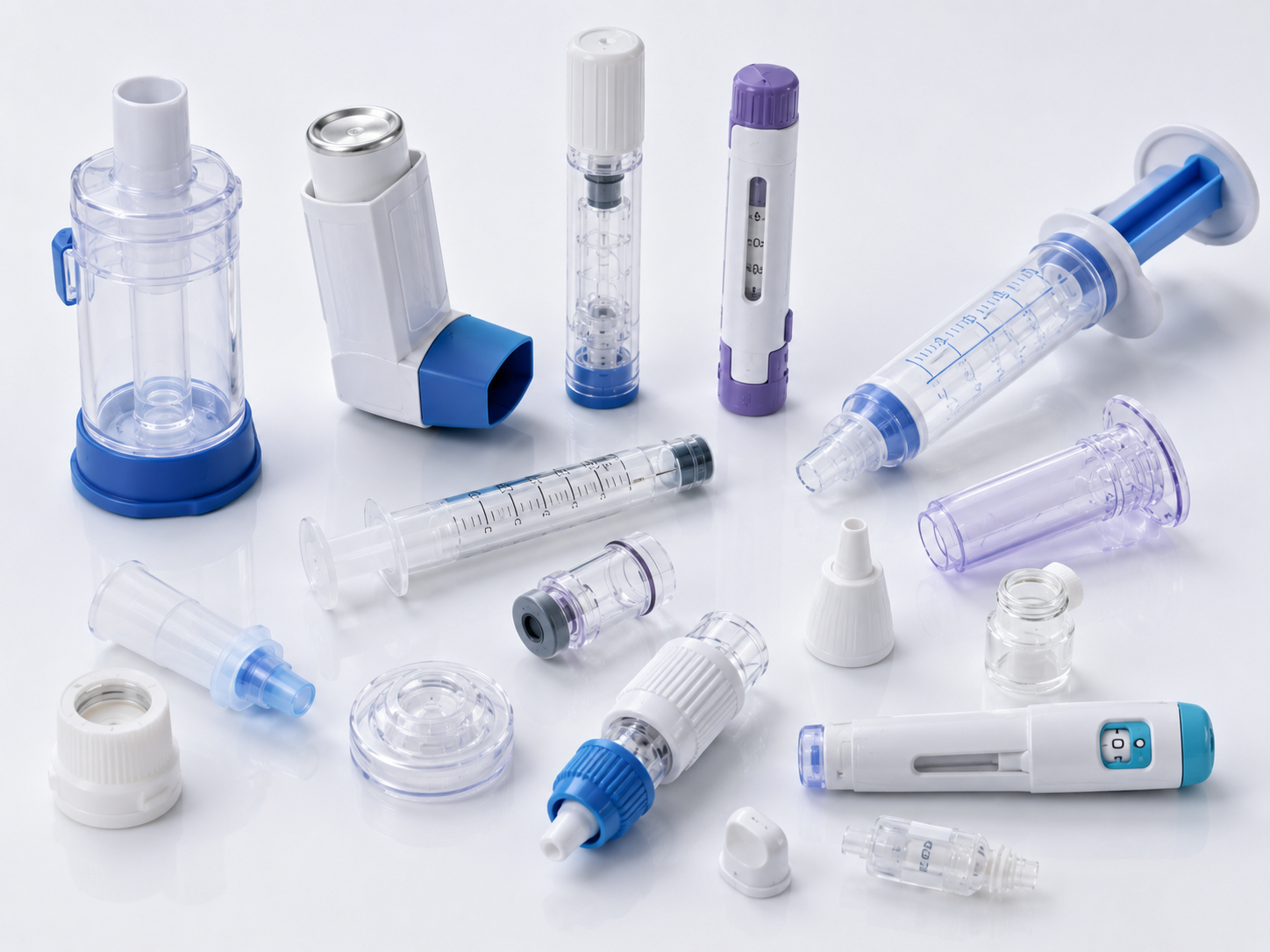

| Drug Delivery | Inhaler housings, insulin pen components |
Common Medical Injection Molding Materials
Material selection is one of the most important decisions in medical product development. The chosen polymer must satisfy mechanical, chemical, thermal, and regulatory requirements while remaining compatible with sterilization methods.
Frequently Used Medical Plastics
| Material | Key Characteristics | Typical Applications |
|---|---|---|

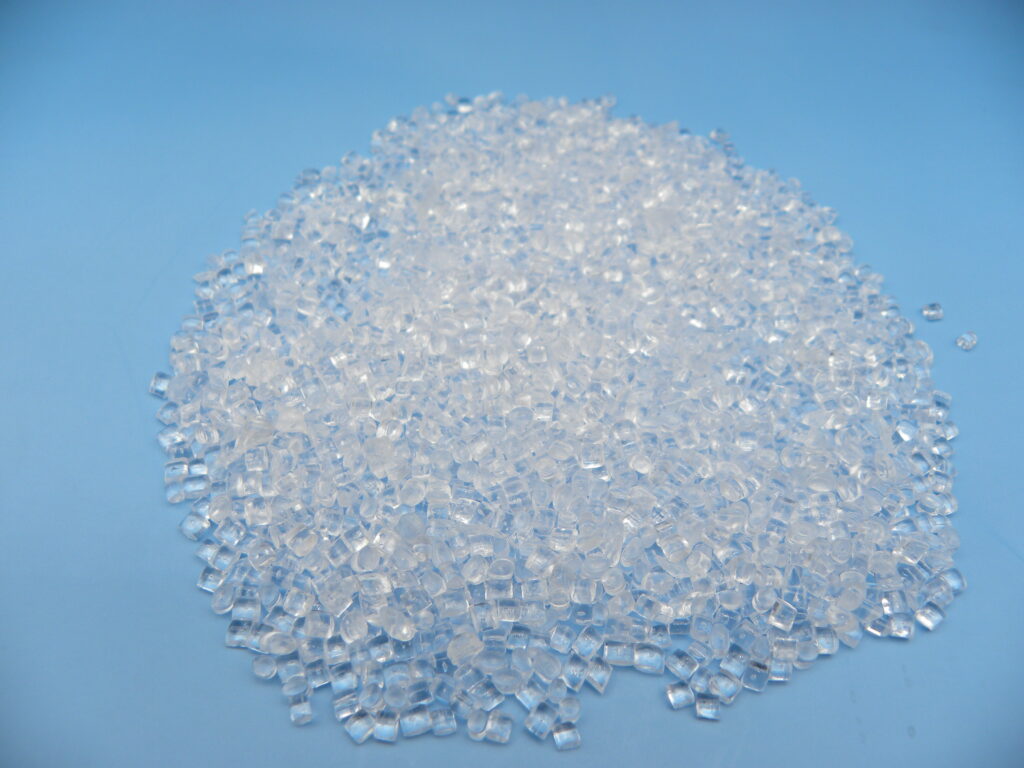

| Polycarbonate (PC) | High impact strength, transparency | Diagnostic housings, fluid reservoirs |

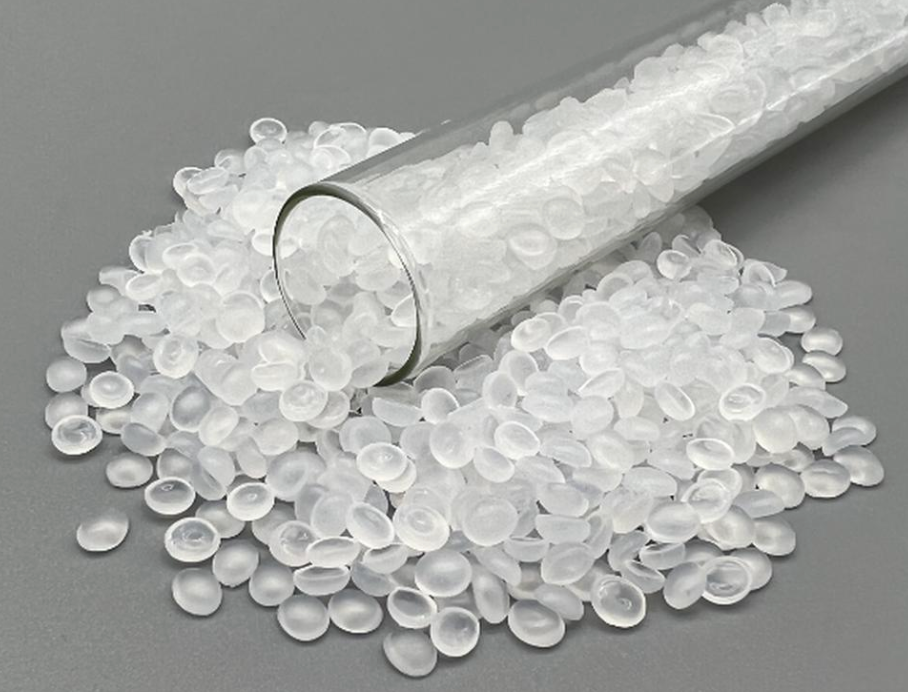

| Polypropylene (PP) | Chemical resistance, low cost | Syringes, specimen containers |
| Polyethylene (PE) | Flexibility, chemical resistance | Tubing, caps, connectors |

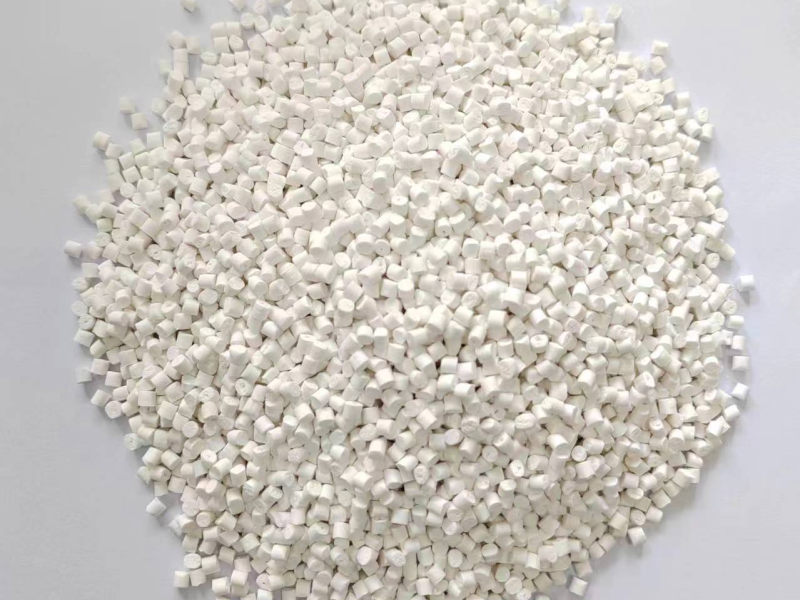

| ABS | Good toughness and processability | Equipment housings |
| PEEK | High temperature and chemical resistance | Surgical instruments, implantable device components* |
| Medical-Grade Silicone (Overmolding) | Soft touch, biocompatibility | Seals, grips, valves |
* Implantable applications require extensive regulatory evaluation and validation.
Medical-grade polymers are typically selected based on ISO 10993 biocompatibility requirements and the intended use of the finished device.
Medical Manufacturing Standards
Unlike consumer products, medical components must comply with rigorous quality management systems and regulatory expectations.
Commonly referenced standards include:
| Standard | Purpose |
|---|---|
| ISO 13485 | Quality management system for medical devices |
| ISO 10993 | Biological evaluation of medical devices |
| ISO 14644 | Cleanroom classification |
| FDA Quality System Regulation (21 CFR Part 820) | U.S. medical device quality requirements |
| EU MDR | European Medical Device Regulation |
Manufacturers should establish validated production processes, documented traceability, and robust quality controls to support regulatory compliance and product consistency.
Cleanroom Injection Molding Requirements
Medical plastic components often come into direct or indirect contact with patients, medications, or biological samples. Therefore, controlling contamination during manufacturing is just as important as maintaining dimensional accuracy.
Cleanroom injection molding minimizes airborne particles, microbial contamination, and foreign matter, helping manufacturers meet stringent healthcare requirements.
Typical cleanroom production combines automated injection molding, robotic part handling, and sealed packaging to reduce human intervention.
Common Cleanroom Classifications
| ISO Cleanroom Class | Typical Medical Applications |
|---|---|
| ISO Class 8 | Disposable medical products |
| ISO Class 7 | Diagnostic devices and laboratory consumables |
| ISO Class 6 | High-precision medical components |
| ISO Class 5 | Critical sterile manufacturing processes |
Besides air cleanliness, manufacturers should also monitor:
- Temperature and humidity
- Air pressure differentials
- HEPA filtration performance
- Personnel gowning procedures
- Material traceability
- Equipment maintenance
Proper cleanroom management improves product quality while reducing contamination risks throughout production.
Mold Design Considerations for Medical Products
Medical molds require significantly higher precision than standard industrial molds. In addition to dimensional accuracy, engineers must consider sterilization compatibility, surface finish, ease of cleaning, and long-term production stability.
Key Design Considerations
- High-precision mold machining
- Balanced cooling channels
- Proper venting to eliminate burn marks
- Optimized gate location for cosmetic surfaces
- Mirror polishing for transparent components
- Corrosion-resistant mold steels
- Multi-cavity balance for mass production
- Easy maintenance and validation
For transparent medical components such as fluid reservoirs and diagnostic cartridges, polished cavity surfaces are essential to achieve high optical clarity.
Recommended Mold Materials
| Mold Component | Recommended Material |
|---|---|
| Core & Cavity | S136 Stainless Steel |
| Inserts | H13 Tool Steel |
| Mold Base | P20 / 1.2311 |
| Wear Components | SKD61 |
Stainless mold steels such as S136 are widely used because they offer excellent corrosion resistance and can withstand repeated cleaning and sterilization cycles.
Sterilization Compatibility
Medical plastic components frequently require sterilization before use. Material selection should therefore consider compatibility with the intended sterilization method.
The most common sterilization methods include:
Ethylene Oxide (EtO)
Ethylene oxide sterilization operates at relatively low temperatures and is suitable for many heat-sensitive plastic materials.
Typical compatible materials include:
- PP
- PC
- PE
- ABS (grade dependent)
Gamma Irradiation
Gamma sterilization uses high-energy radiation to eliminate microorganisms. Some plastics may experience discoloration or property changes after repeated exposure.
Common compatible materials:
- PP
- PE
- Certain medical-grade PC
- COC/COP
Steam Sterilization (Autoclave)
Autoclaving exposes components to high-temperature saturated steam, requiring materials with excellent thermal stability.
Typical materials:
- PPSU
- PSU
- PEEK
- Selected high-temperature PC grades
Sterilization Compatibility Comparison
| Material | EtO | Gamma | Steam |
|---|---|---|---|
| PP | ✓ | ✓ | Limited |
| PE | ✓ | ✓ | ✗ |
| PC | ✓ | Grade Dependent | Limited |
| PPSU | ✓ | ✓ | ✓ |
| PEEK | ✓ | ✓ | ✓ |
Selecting the appropriate polymer early in product development helps avoid degradation during sterilization and extends product service life.
Quality Control and Validation
Medical injection molding requires a documented quality management system to ensure product consistency, traceability, and regulatory compliance.
Typical quality control activities include:
- Incoming material inspection
- Mold qualification
- First Article Inspection (FAI)
- In-process dimensional inspection
- CMM verification
- Functional testing
- Visual inspection
- Packaging validation
Process validation commonly includes:
- IQ (Installation Qualification)
- OQ (Operational Qualification)
- PQ (Performance Qualification)
Quality Control Workflow
| Inspection Stage | Objective |
|---|---|
| Raw Material Verification | Confirm resin conformity |
| Mold Qualification | Validate tooling performance |
| First Article Inspection | Approve initial production samples |
| In-Process Inspection | Monitor production stability |
| Final Inspection | Verify product compliance |
| Packaging Inspection | Ensure sterile packaging integrity |
Documented traceability throughout production improves quality assurance and simplifies regulatory audits.
Common Manufacturing Challenges and Solutions
Although injection molding is highly repeatable, manufacturers may encounter technical challenges during medical production.
| Challenge | Possible Cause | Engineering Solution |
|---|---|---|
| Flash | Poor mold fit | Improve mold precision |
| Short Shot | Inadequate filling | Optimize gate and process parameters |
| Sink Marks | Thick wall sections | Redesign wall thickness and packing |
| Warpage | Uneven cooling | Improve cooling channel layout |
| Bubbles | Moisture in resin | Proper material drying |
| Contamination | Poor cleanroom control | Strengthen environmental management |
| Optical Defects | Mold surface imperfections | Mirror polish mold cavities |
Addressing these issues during product development reduces production costs and improves manufacturing reliability.
Why Choose Samgo for Medical Injection Molding?
At Samgo, we support customers from concept development to mass production with comprehensive engineering services tailored to medical plastic components.
Our Capabilities
| Service | Customer Benefit |
|---|---|
| Product Design Optimization | Improved manufacturability |
| DFM Analysis | Reduced tooling risk |
| Moldflow Simulation | Optimized filling and cooling |
| Precision Mold Manufacturing | Long mold life and dimensional stability |
| Medical Plastic Injection Molding | Consistent production quality |
| Quality Inspection | Reliable dimensional verification |
| Project Management | Efficient communication and delivery |
Our engineering team focuses on delivering precision, consistency, and manufacturing efficiency for medical device manufacturers worldwide.
Frequently Asked Questions
What materials are most commonly used for medical injection molding?
Medical-grade PP, PC, PE, ABS, PPSU, PEEK, COC, and COP are among the most commonly used materials, depending on the product’s mechanical, chemical, and sterilization requirements.
Is cleanroom molding always required?
Not necessarily. The required cleanroom classification depends on the product’s intended use, regulatory requirements, and contamination risk.
Can transparent medical components be injection molded?
Yes. Materials such as optical-grade polycarbonate and cyclic olefin polymers (COC/COP) are widely used for transparent medical devices and diagnostic cartridges.
What quality standards are important for medical injection molding?
Manufacturers typically implement quality systems aligned with ISO 13485, while material biocompatibility may be evaluated according to ISO 10993. Regulatory requirements vary by market and device classification.
Plastic Injection Molding Gate Types: Selection, Design Principles, Advantages, and Applications
Gate design is one of the most critical aspects of plastic injection mold engineering. Although the gate is usually the smallest feature in the runner system, it has a significant influence on melt flow, packing pressure, cooling efficiency, part appearance, cycle time, and overall product quality.
A poorly designed gate can cause numerous molding defects, including short shots, sink marks, weld lines, jetting, burn marks, excessive gate vestige, and part warpage. Conversely, selecting the appropriate gate type and location helps ensure balanced filling, consistent dimensional accuracy, and efficient production.

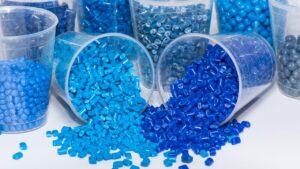

Polypropylene (PP) Materials: Types, Grades, Properties, and Applications
